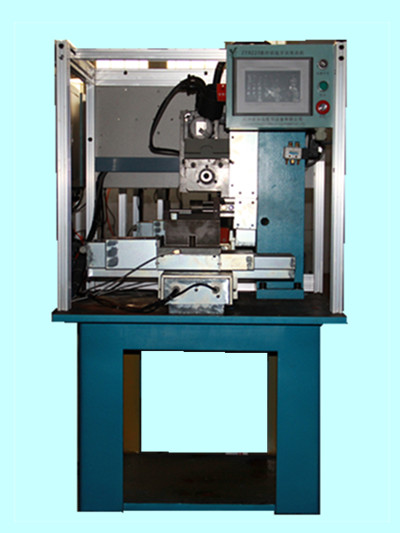

NAME：The numerical control key bit machine
NO.：ZY9225
TIME：2016-07-01
VIEWS：

Detailed

The equipment is controlled by PLC, servo motor and pneumatic components are key components for the implementation of the milling tooth machine, main machine through manual feeding, can be more pieces processing at the same time, the pneumatic clamping fixture three-axis linkage gear milling operation, three axis respectively control the key milling tooth depth, bit of center distance and X to the translation of feed. Each shaft are installed detection device, which can automatically detect malfunction, operators need to troubleshoot according to the police. Main carriage driven by servo, to guarantee the machining precision. The processing object is copper, iron trough the key.
