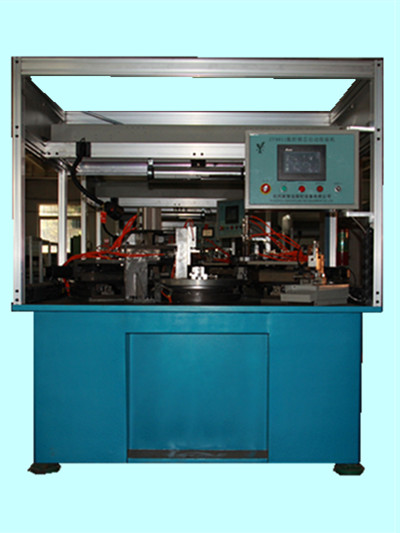

NAME：Numerical control lock billiard assembly machine
NO.：ZY9011
TIME：2016-07-01
VIEWS：

Detailed

The device is controlled by PLC, servo motor, stepping motor and pneumatic components as actuators, equipped with a large number of high precision detecting at the same time, guarantee the machine characteristics of high efficiency, high precision, low trouble. Main machine through transfer artifacts, vibration plate rotating turntable automatic feed finish assembly work, water first laser system bit feeding, complete the billiard filling up and down for two or three station, open test, five or six filling station is spring seal. In addition to the feeding station, all the other stations are installed detection device, can automatically detect malfunction, operators need to troubleshoot according to the police. Turntable driven by stepping motor, and precision gear reducer, ensure the accuracy of the fixture positioning. Processing object is gourd lock, the padlock, etc
